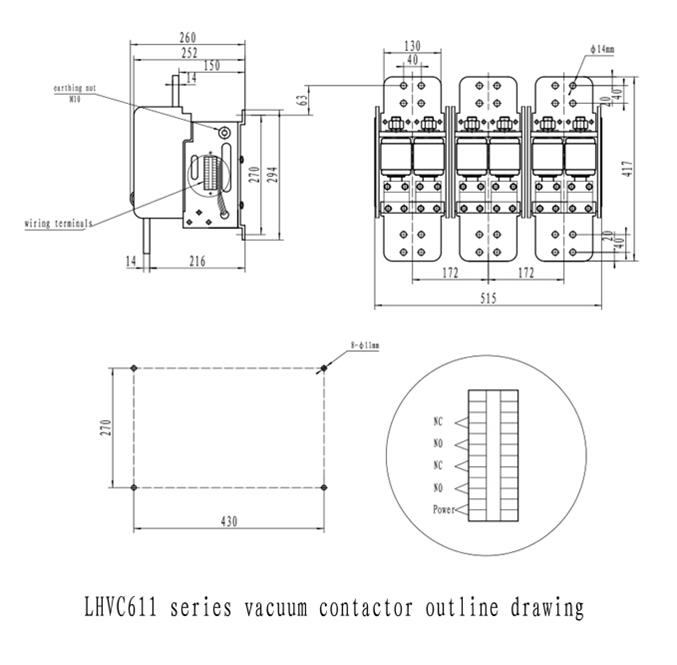

LHVC611-2000,2600,3200A/1500V |
|
| |
Name |
Unit |
Data |
Main circuit |
Rated working voltage (Ue) |
V |
1500 |
Rated working current (Ie) |
A |
2000, 2600, 3200 |
Rated thermal current (Ith) |
A |
2000, 2600, 3200 |
Rated frequency (fr) |
Hz |
50～60 |
Rated making capacity (I) |
A |
4Ie（AC-2） |
Rated breaking capacity (Ic) |
A |
4Ie（AC-2） |

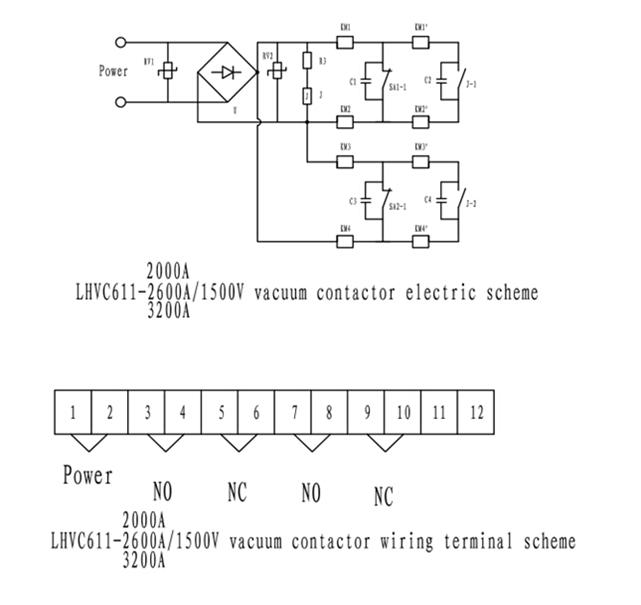

Control circuit |
Rated voltage (Us) |
V |
AC or DC 110/220 |
Rated power (Ps) |
Electric holding |
VA |
≤1600/50 (absorbing/holding) |
Auxiliary circuit |
Form |
|
2NO+2NC |
Rated value |
|
220V(110V),10A(AC12);24V,10A(DC12) |
Min value |
|
220V/AC,10mA;24V/DC,10mA |
Rated operating frequency |
Long-term |
time/h |
300 |
Short-term |
600 |
Electrical life |
10000 times |
10 |
Mechanical life |
10000 times |
30 |
Net weight
|
kg |
71 |
Power frequency withstand voltage |
Main circuit |
Between phases, phase to earth |
KV |
4.2 |
Vacuum breaks |
KV |
10 |
auxiliary circuit to earth |
KV |
2 |
Mechanical characteristics |
opening travel |
mm |
3±0.5 |
excess of stroke |
mm |
1.5±0.5 |
Closing time |
ms |
≤120 |
Original opening time |
ms |
≤50 |
3-phase synchronism |
ms |
≤3 |
Remark: rated control voltage can be made according to customer’s requirements. |
|
|
| |
| |
|
| |
|
| |
|
| |
|
